Our Vertical Floor Mounted Air Handling Unit (ATVFM Series) is designed to optimize HVAC performance by efficiently utilizing vertical space. These units provide superior air distribution, precise climate control, and enhanced energy efficiency. Easy installation and maintenance, robust performance, and minimal noise, making it ideal for a wide range of commercial and industrial applications. Its compact design ensures reliable operation while improving indoor air quality and overall comfort.

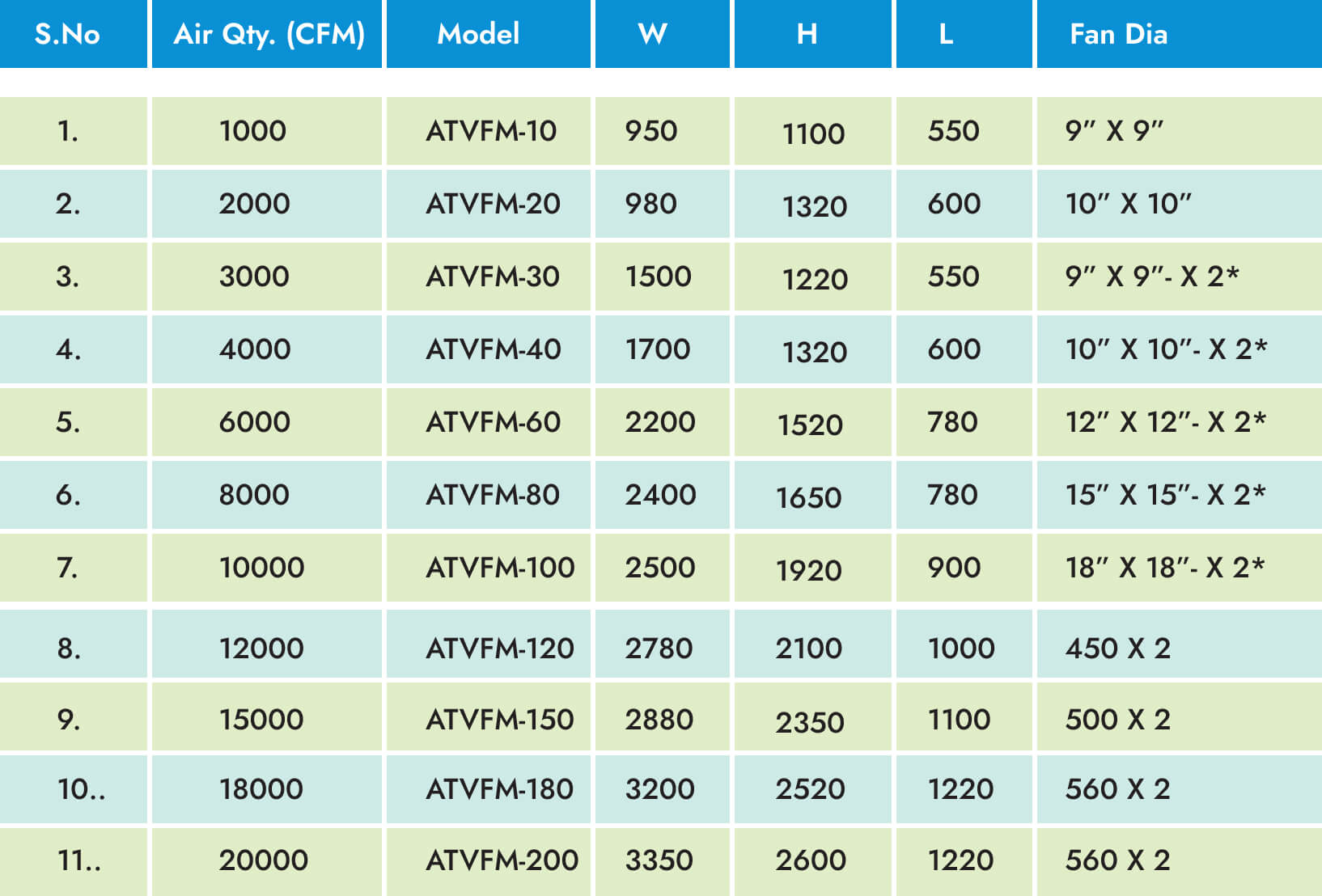

*Fan is with dual / twin impeller with single shaft suitable for single motor.
Notes:
1. All the dimensions are in mm/inches as specified above
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 30-50mm static pressure. For selection at other static pressure please contact our technical team.
4. For 8 rows deep coil add 100 mm extra to the length of the unit
5. Pre filter considered 50 mm thick and fine filter considered 305 mm thick.
*Fan is with dual / twin impeller with single shaft suitable for single motor.
Notes:
1. All the dimensions are in mm/inches as specified above
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 30-50mm static pressure. For selection at other static pressure please contact our technical team.
4. For 8 rows deep coil add 100 mm extra to the length of the unit
5. Pre filter considered 50 mm thick and fine filter considered 305 mm thick.
