Fresh Air Handling Unit (FAHU) is an excellent solution for regulating and circulating fresh air as part of an HVAC system and it ensures a constant flow of fresh clean air and a very well-conditioned environment.
Notes:

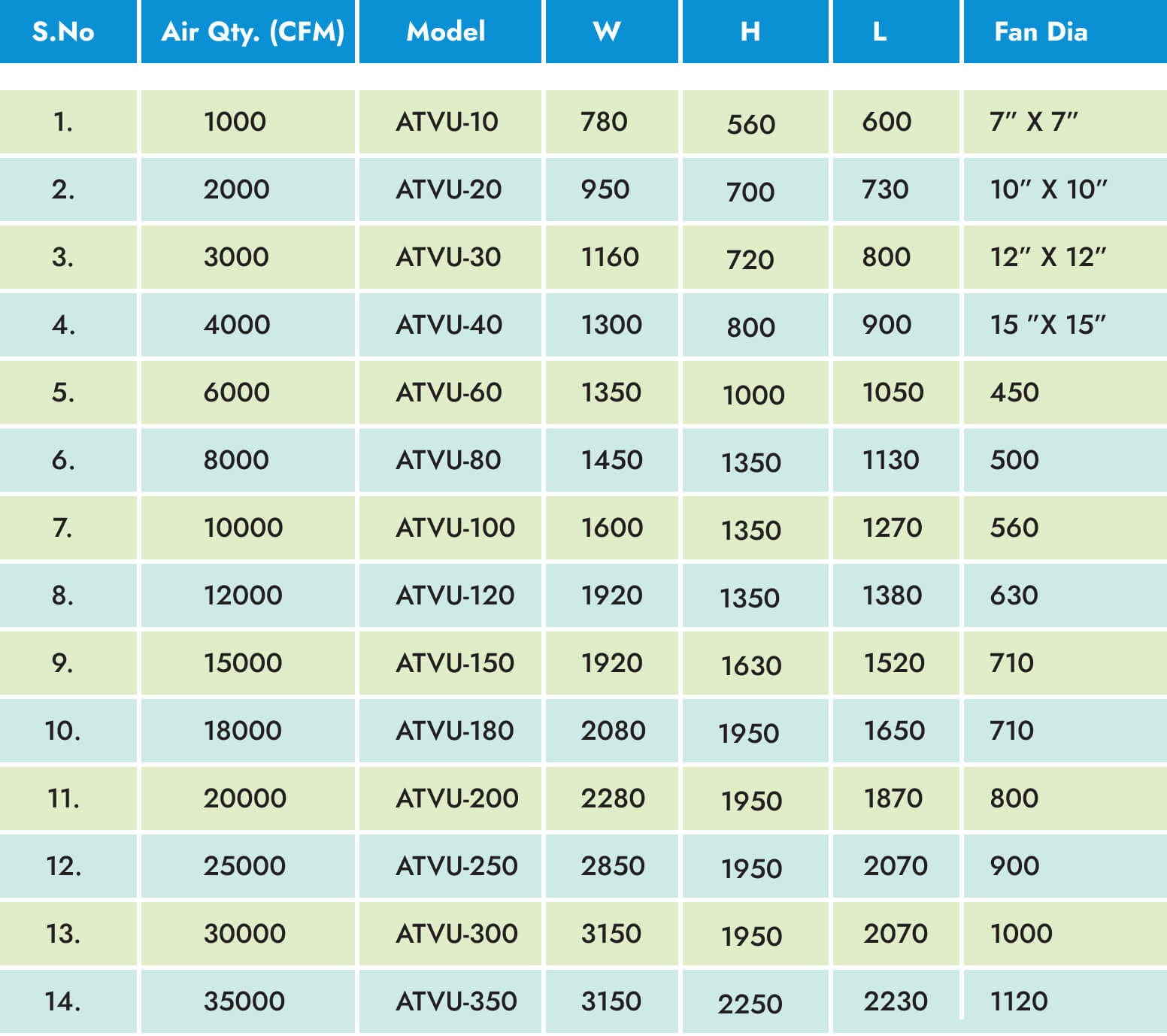

1. All the dimensions are in mm/inches as specified above.
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 40-50mm static pressure. For selection at other static pressure please contact our technical team.
4. Unit height excluding the base channel.
Notes:
1. All the dimensions are in mm/inches as specified above.
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 40-50mm static pressure. For selection at other static pressure please contact our technical team.
4. Unit height excluding the base channel.
We “CARE“…
Customized
Applied
Reliable
Efficient
engineering solutions delivering best Indoor Air Quality
