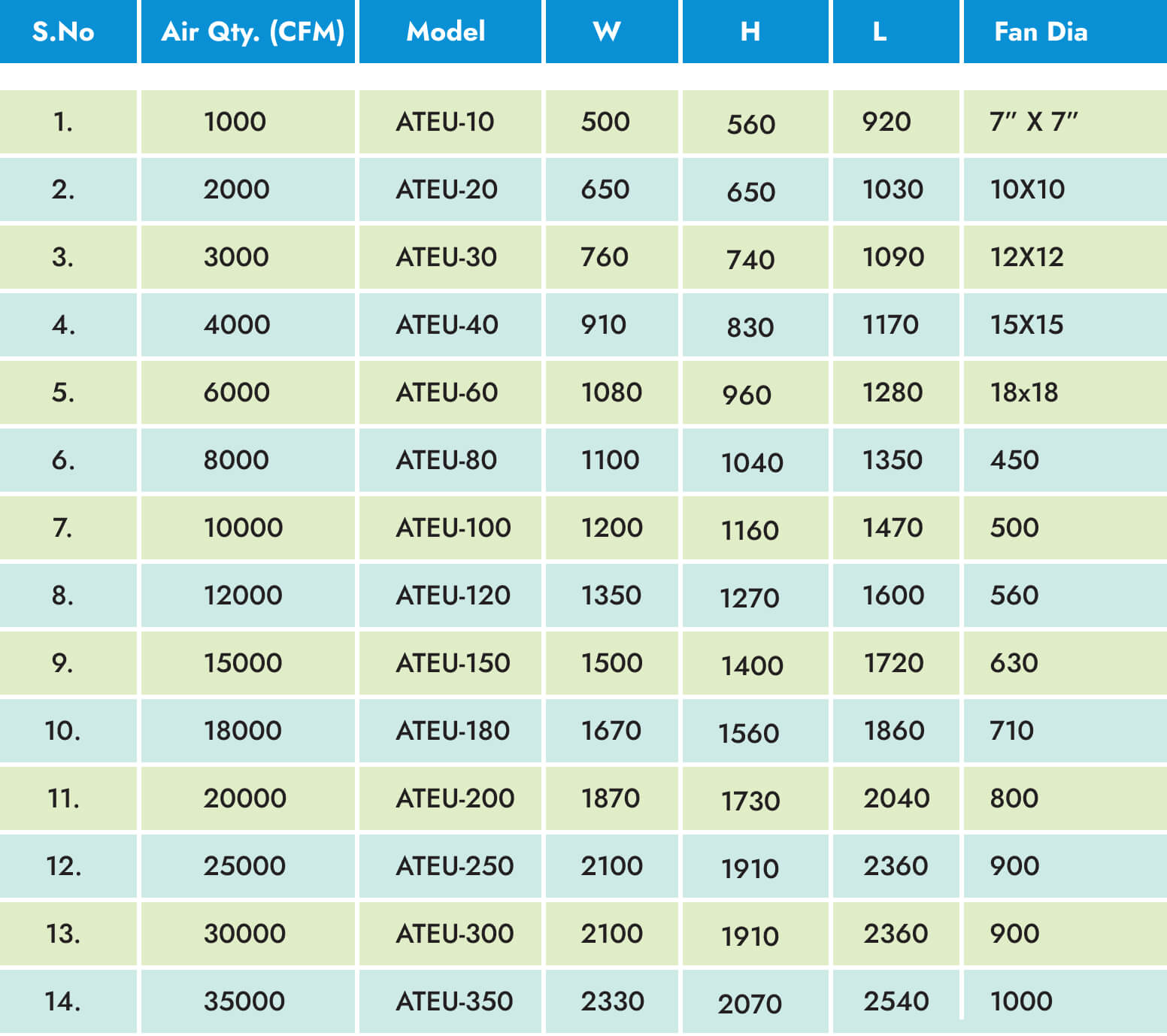

Notes:

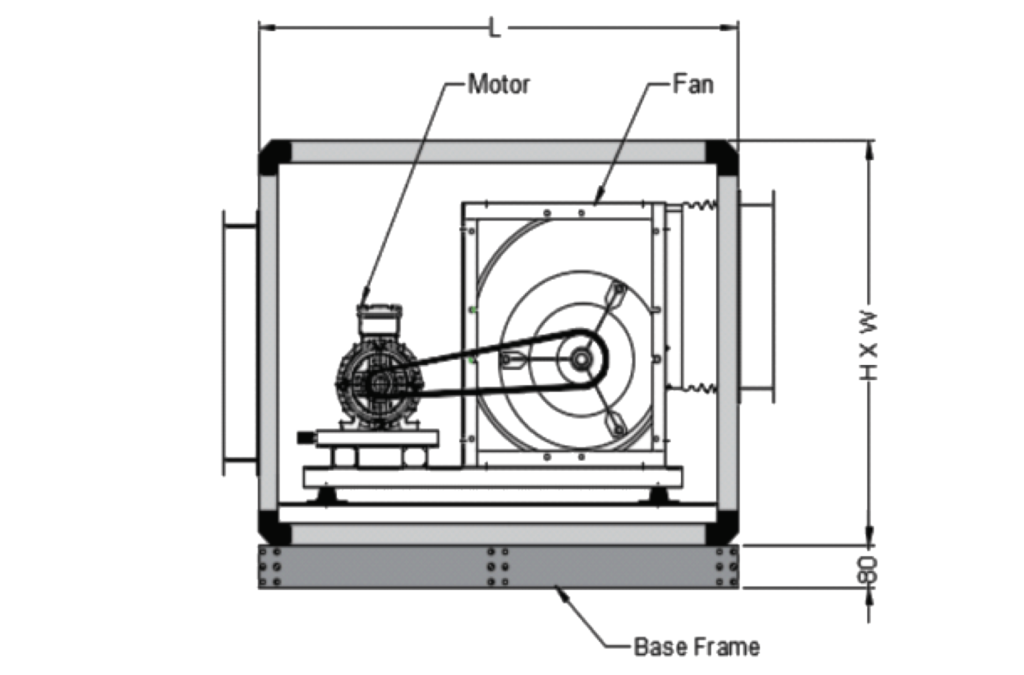

1. All the dimensions are in mm/inches as specified above.
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm in above dimensions.
3. Fans selected at 40-50mm static pressure.
Notes:
1. All the dimensions are in mm/inches as specified above.
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm in above dimensions.
3. Fans selected at 40-50mm static pressure.
