Our Horizontal Floor Mounted Air Handling Unit (ATFM Series) is a versatile HVAC solution designed for efficient floor space utilization in commercial and residential buildings. This unit offers easy installation and maintenance, improved air distribution, enhanced energy efficiency, and quiet operation, contributing to a comfortable and productive indoor environment.

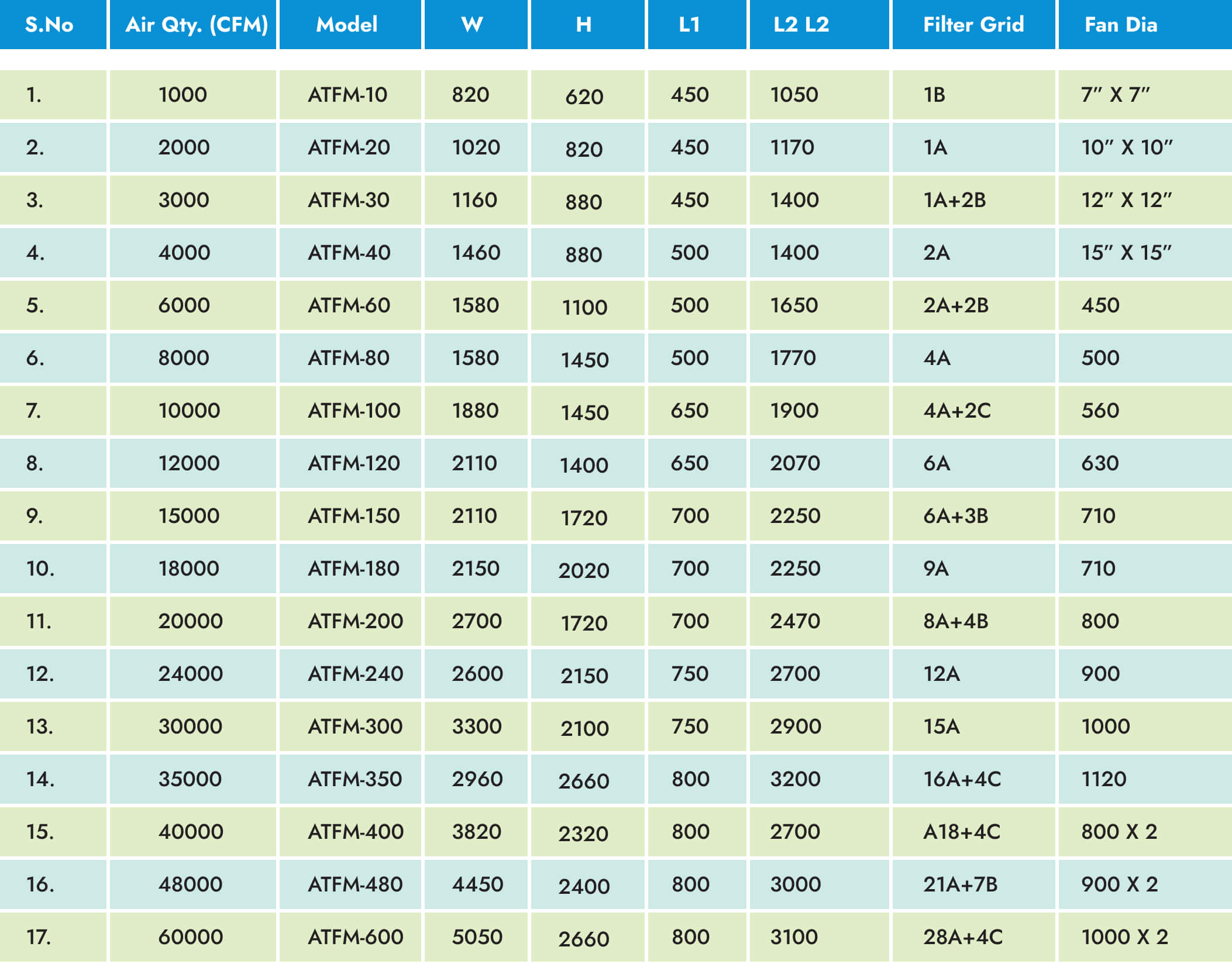

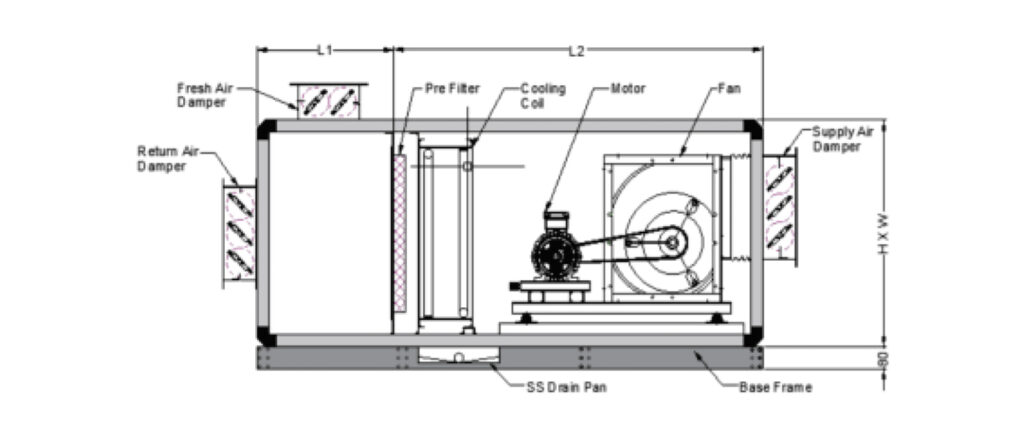

Notes:
1. All the dimensions are in mm/inches as specified above
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 40-50mm static pressure. For selection at other static pressure please contact our technical team.
4. For 8 rows deep coil add 100 mm extra to the length of the unit.
5. Pre filter considered 50 mm thick.
6. Filter dimensions: A = 610 x 610, B = 610 x 305, C = 305 x 610, D = 305 x 305 (all in mm).
7. Unit height excluding the base channel.
Notes:
1. All the dimensions are in mm/inches as specified above
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 40-50mm static pressure. For selection at other static pressure please contact our technical team.
4. For 8 rows deep coil add 100 mm extra to the length of the unit.
5. Pre filter considered 50 mm thick.
6. Filter dimensions: A = 610 x 610, B = 610 x 305, C = 305 x 610, D = 305 x 305 (all in mm).
7. Unit height excluding the base channel.
