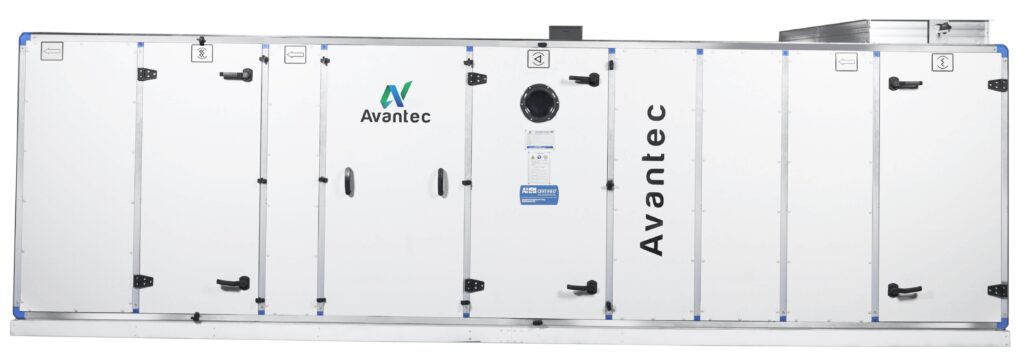

Our Horizontal Floor Mounted Air Handling Unit (ATFM Series) for cleanroom applications is designed to meet stringent international air quality standards, ensuring a contaminant-free environment. These units provide precise control over temperature, humidity, and air filtration, essential for maintaining cleanroom integrity. Easy installation, efficient use of space, and reliable performance, make it ideal for high-tech industries such as Pharmaceuticals, Biotechnology, Solar PV Manufacturing Microelectronics and FMCG. Its robust design ensures continuous, quiet operation while delivering consistent, high-quality air flow to support critical processes.

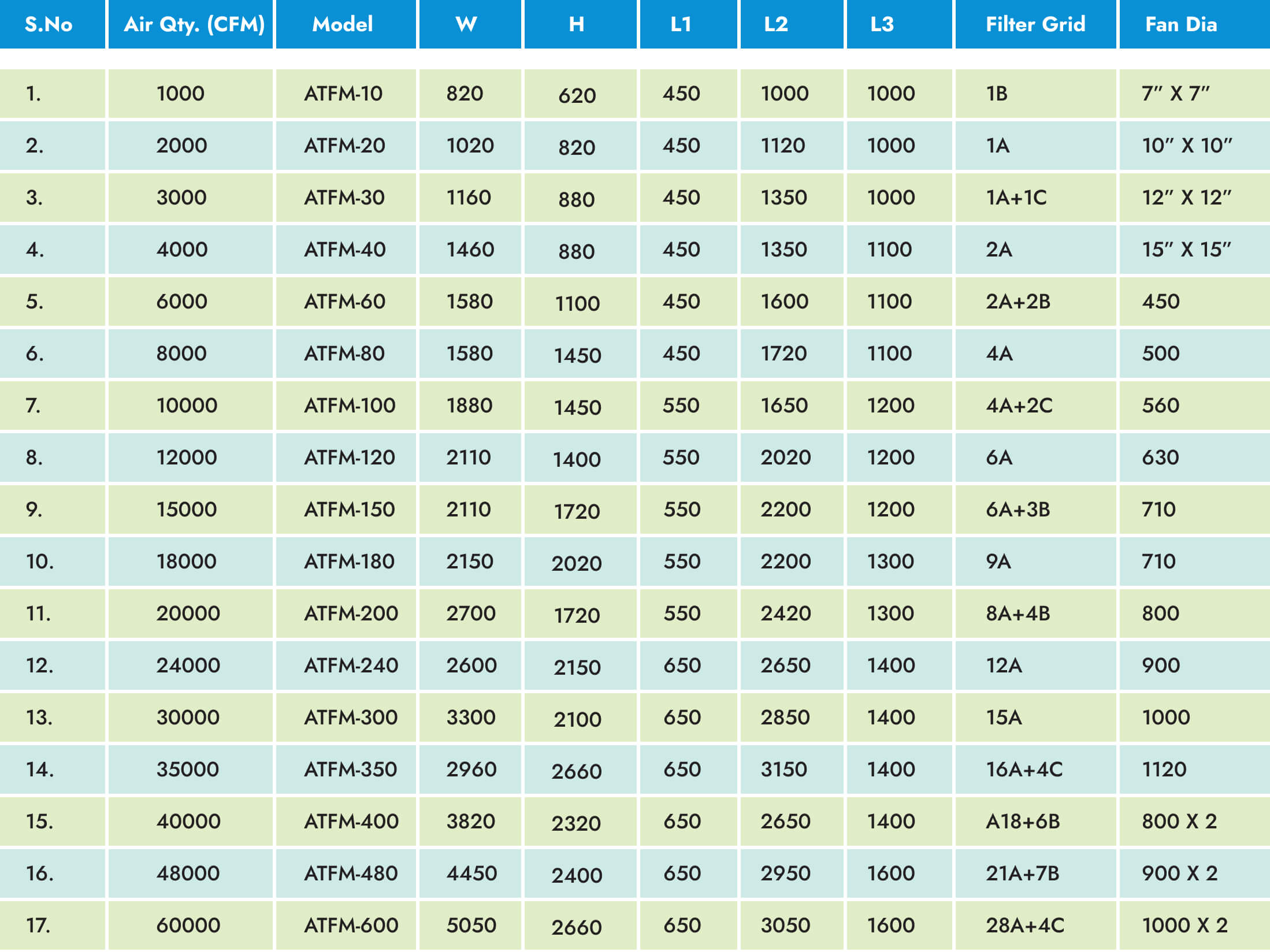

Notes:
1. All the dimensions are in mm/inches as specified above
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 40-50mm static pressure. For selection at other static pressure please contact our technical team.
4. For 8 rows deep coil add 100 mm extra to the length of the unit
5. Pre filter considered 50 mm thick and fine filter considered 305 mm thick.
6. Filter dimensions: A = 610 x 610, B = 610 x 305, C = 305 x 610, D = 305 x 305 (all in mm).
7. Unit height excluding the base channel.
Notes:
1. All the dimensions are in mm/inches as specified above
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm to the length, width & height of the unit.
3. Fans selected at 40-50mm static pressure. For selection at other static pressure please contact our technical team.
4. For 8 rows deep coil add 100 mm extra to the length of the unit
5. Pre filter considered 50 mm thick and fine filter considered 305 mm thick.
6. Filter dimensions: A = 610 x 610, B = 610 x 305, C = 305 x 610, D = 305 x 305 (all in mm).
7. Unit height excluding the base channel.
