Optimize your indoor environment with our Ceiling Suspended Unit, available in both direct driven (ATCS Series) & belt driven (ATCSB Series) drive arrangement. Our units are designed with precision for areas where floor space is at a premium. These units delivers efficient airflow, enhanced energy savings, and silent operation, straightforward installation, minimal upkeep, and a discreet presence, suitable for various applications.
*Fan is with dual / twin impeller with single shaft suitable for single motor.
Notes:

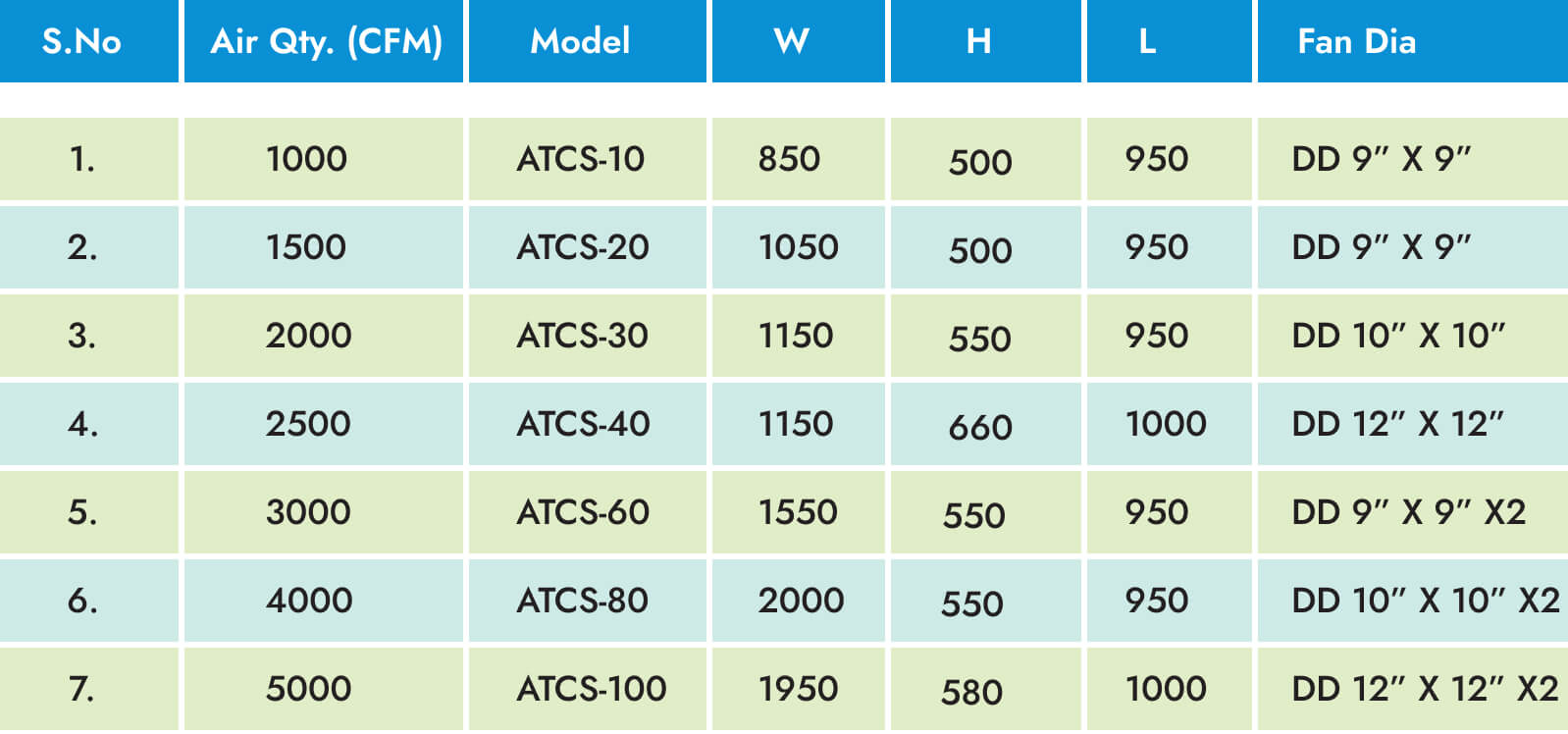

1. All the dimensions are in mm/inches as specified above
2. Standard models with 25 mm thick panel. For 50 mm thick panel add 50 mm to the length of the unit.
3. Fans selected at 30-50 mm static pressure. For selection at other static pressure please contact our technical team.
4. Coil rows deep shall be 4/6. For 8 rows deep coil add 100 mm extra to the length of the unit.
5. Pre filter considered 50 mm thick and fine filter considered 305 mm thick.
6. Unit height excluding the mounting channel.
*Fan is with dual / twin impeller with single shaft suitable for single motor.
Notes:
1. All the dimensions are in mm/inches as specified above
2. Standard models with 25 mm thick panel. For 50 mm thick panel add 50 mm to the length of the unit.
3. Fans selected at 30-50 mm static pressure. For selection at other static pressure please contact our technical team.
4. Coil rows deep shall be 4/6. For 8 rows deep coil add 100 mm extra to the length of the unit.
5. Pre filter considered 50 mm thick and fine filter considered 305 mm thick.
6. Unit height excluding the mounting channel.
