Air Scrubber unit

PRODUCTS RANGE

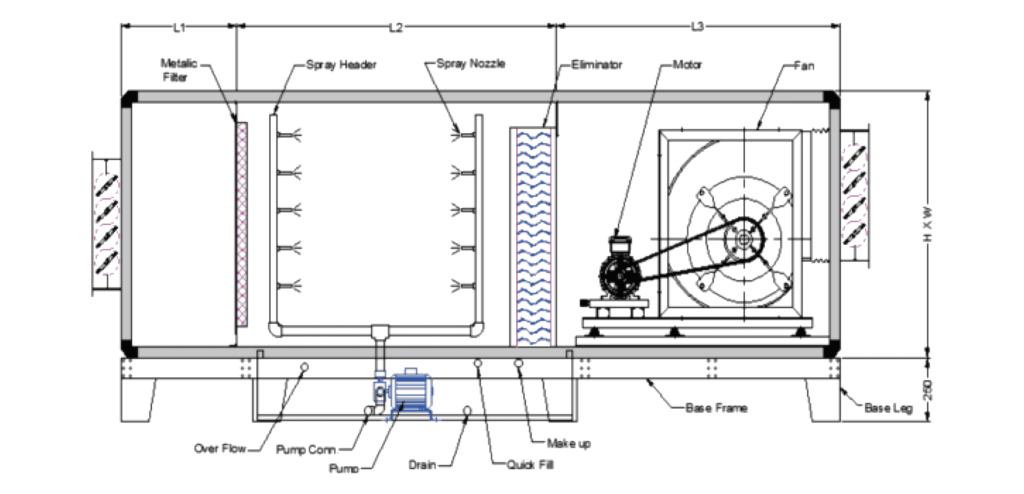

Air Scrubber unit - atas series

Enhance your indoor air quality with our Air Scrubbers (ATAS series) ensuring advanced air purification systems that remove contaminants and pollutants from the air. Avantec offers both wet & dry scrubbers ensuring effective particulate & gas removal, imp[roved air quality and enhanced respiratory health, ideal for both residential and industrial applications.

Certified By

Value-added Features

  • AHRI certified unit with “CL1” leakage class rating as per AHRI 1350 Standards.
  • Equipped with non-overloading type AMCA certified Centrifugal Blowers (backward curve) ensuring Air Performance & Sound.
  • UL certified Filters as per EN 1822 standard.
  • Suitable for Kitchen exhaust and laboratory exhaust.
  • Electrostatic Filters.
  • UL /CE certified UV lamps.
  • Motor outside the hot air stream.

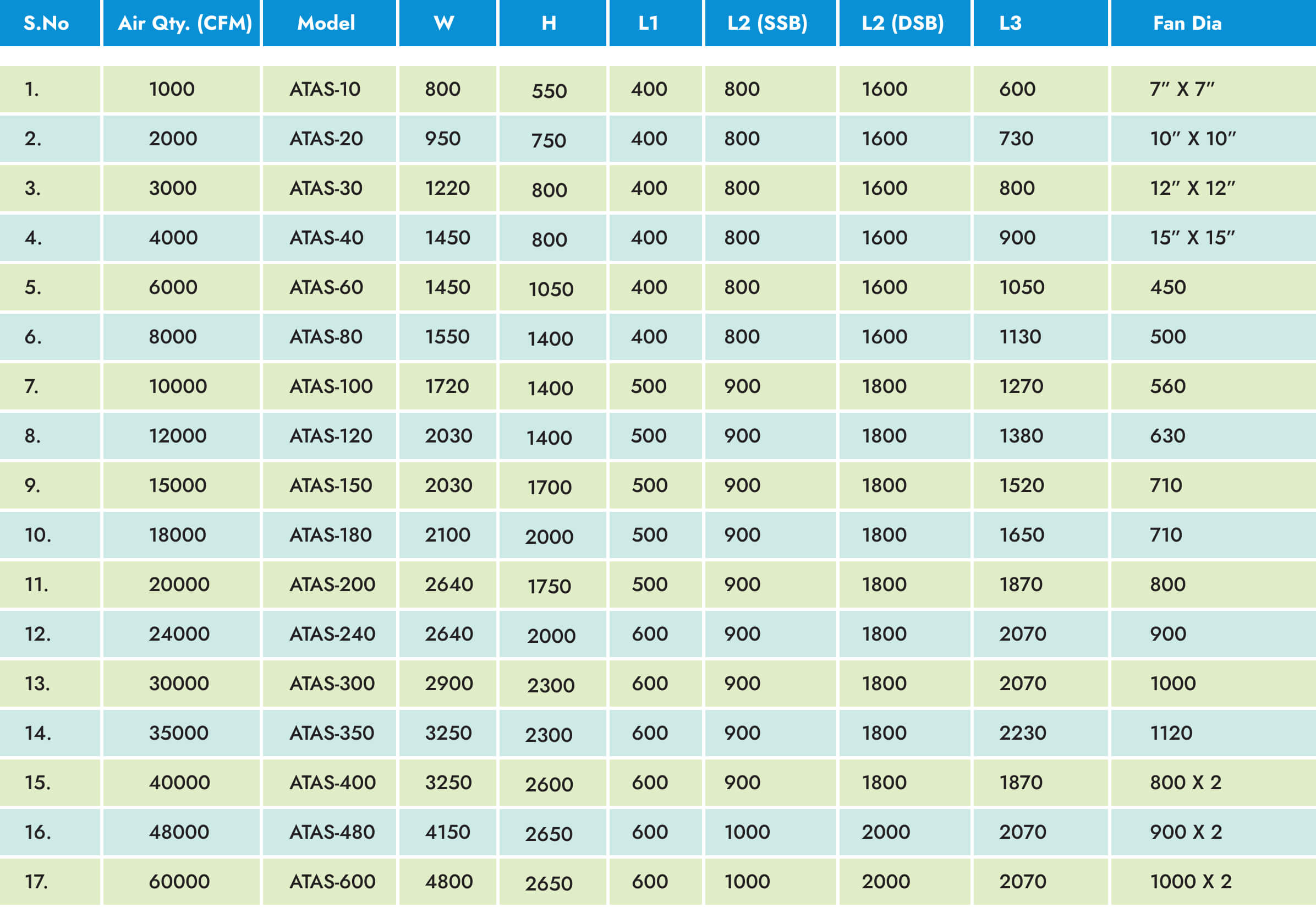

Abbreviation: SSB – Single Spray Bank; DSB – Double Spray Bank

Notes:
1. All the dimensions are in mm/inches as specified above.
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm in above dimensions.
3. Fans selected at 40-50mm static pressure.



Abbreviation: SSB – Single Spray Bank; DSB – Double Spray Bank

Notes:
1. All the dimensions are in mm/inches as specified above.
2. Above dimensions are for 25 mm thick panel. For 50 mm thick panel add 50 mm in above dimensions.
3. Fans selected at 40-50mm static pressure.
